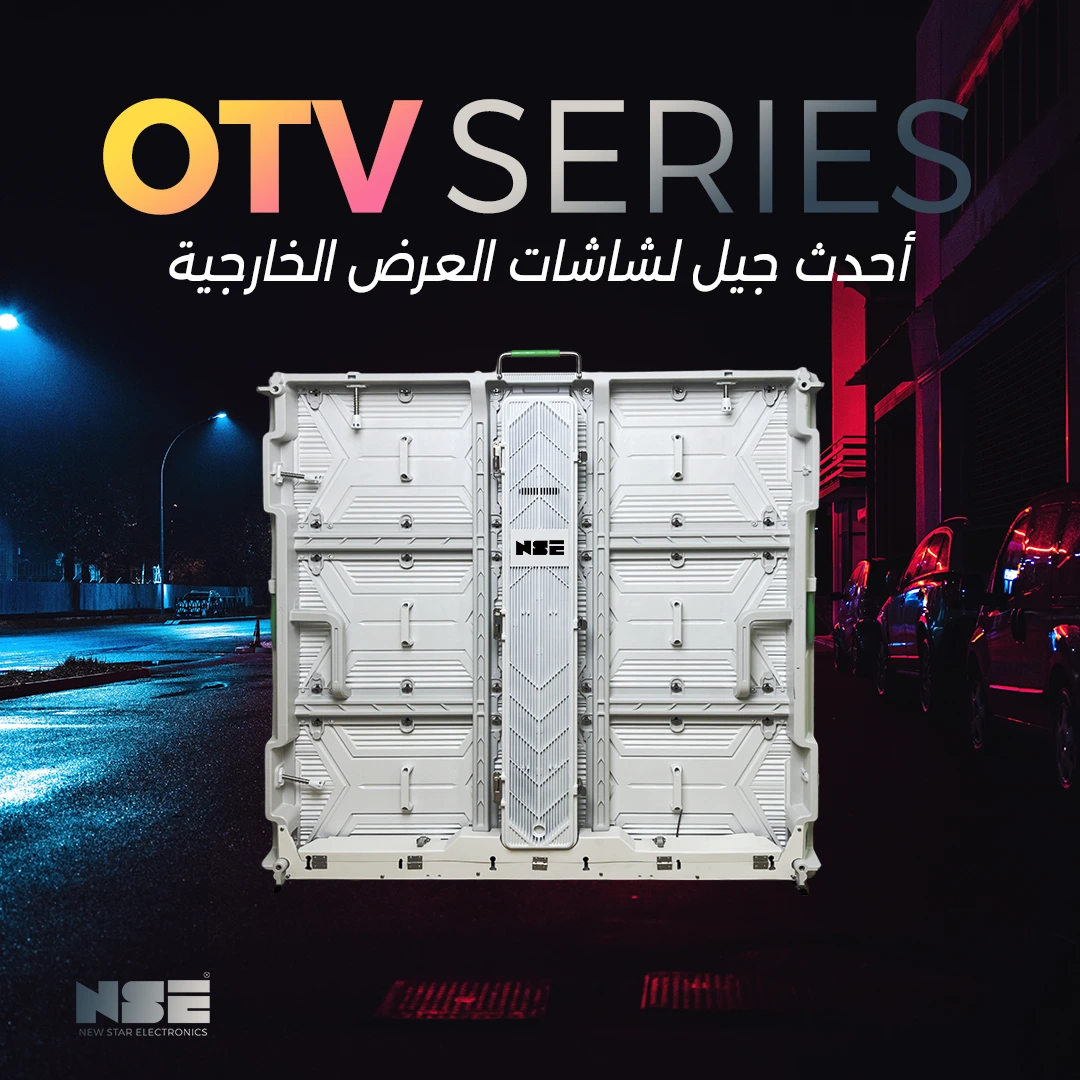

OTV Series

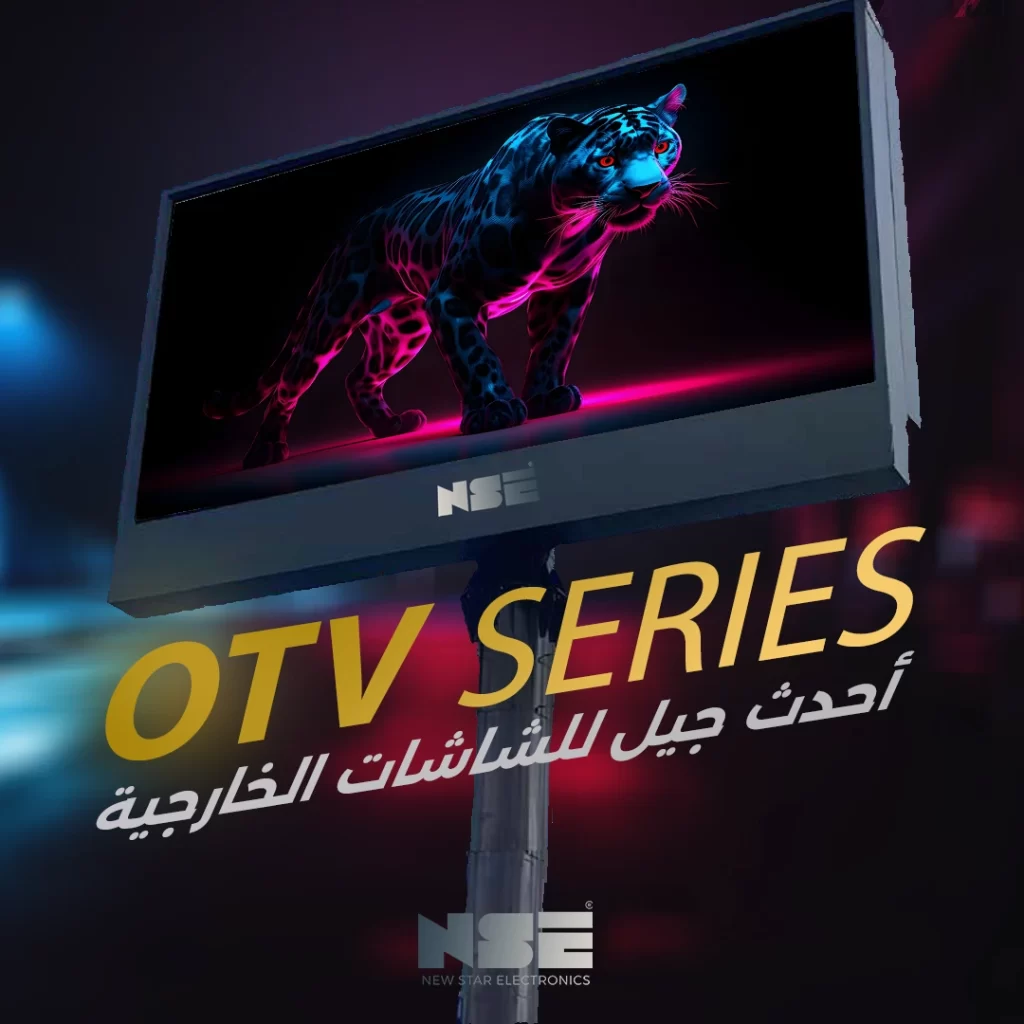

OTV Series الشاشات الخارجية

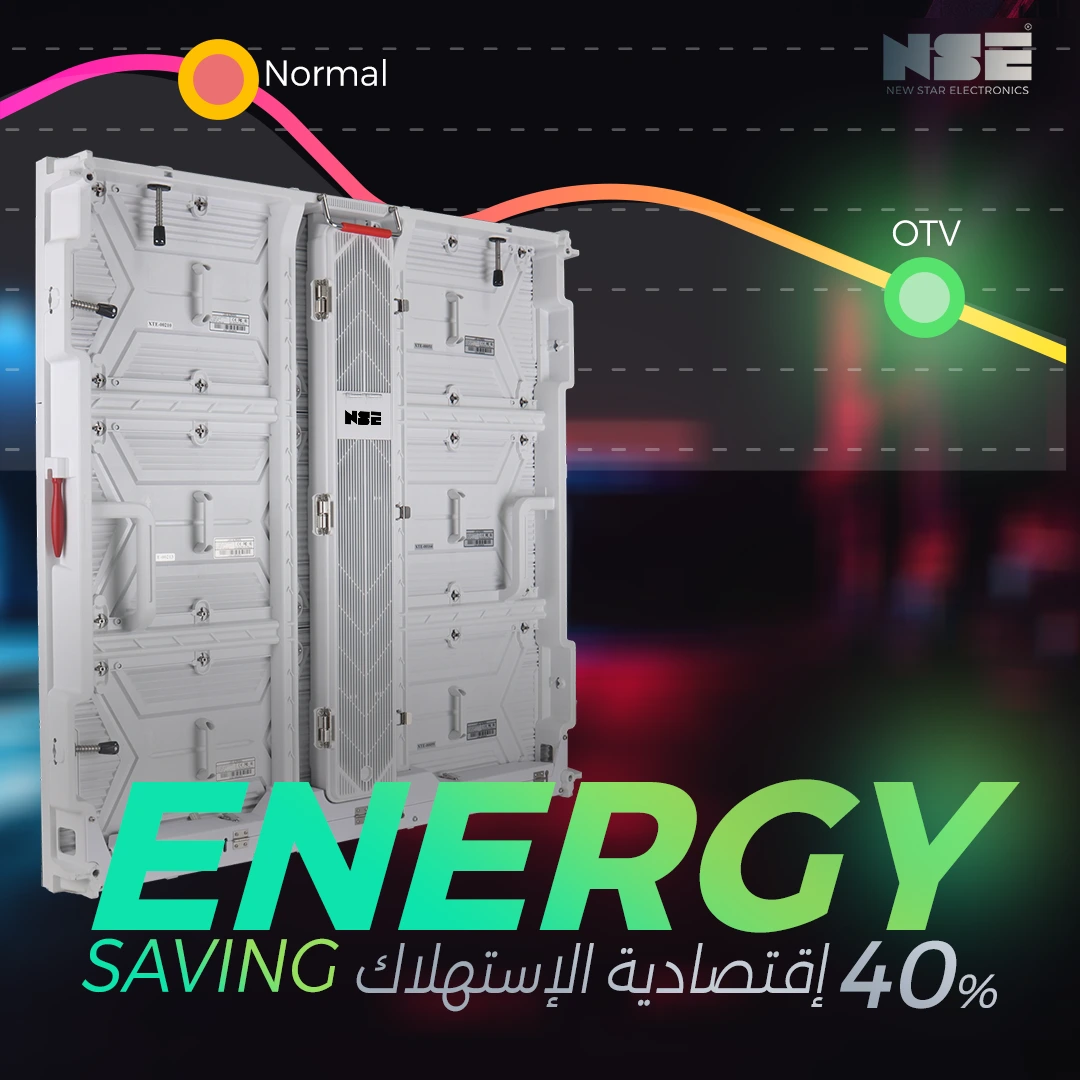

أحدث جيل للشاشات الليد الخارجية لاتحتاج إلى تبريد أو مسافة من الخلف وإقتصادية ومناسبة لجميع النشاطات

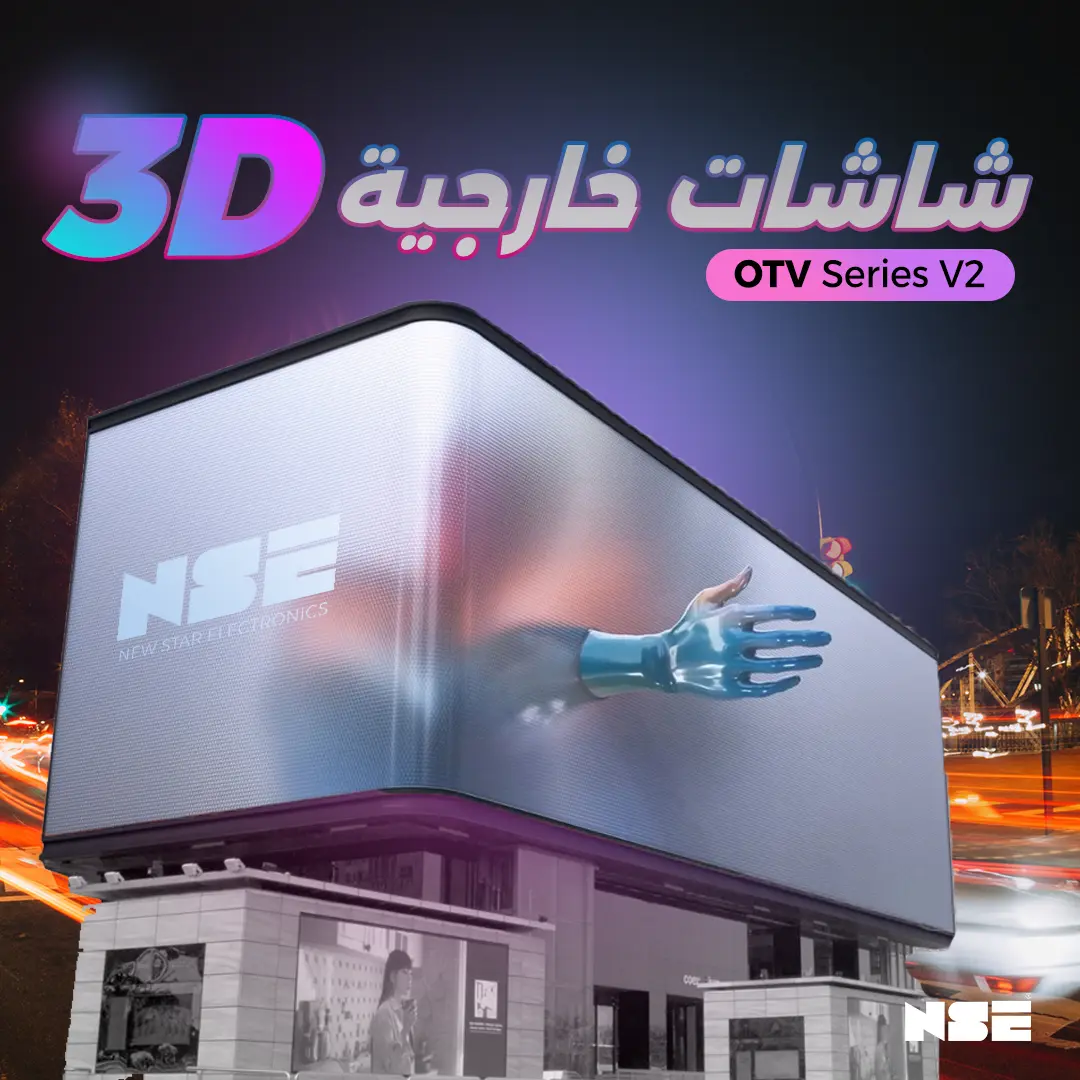

مع إمكانية تشكيل شاشة خارجية تلاثية الأبعاد بميزة
NAKED EYE LED SCREEN
تفاصيل المنتج
الموديل
OTV Series

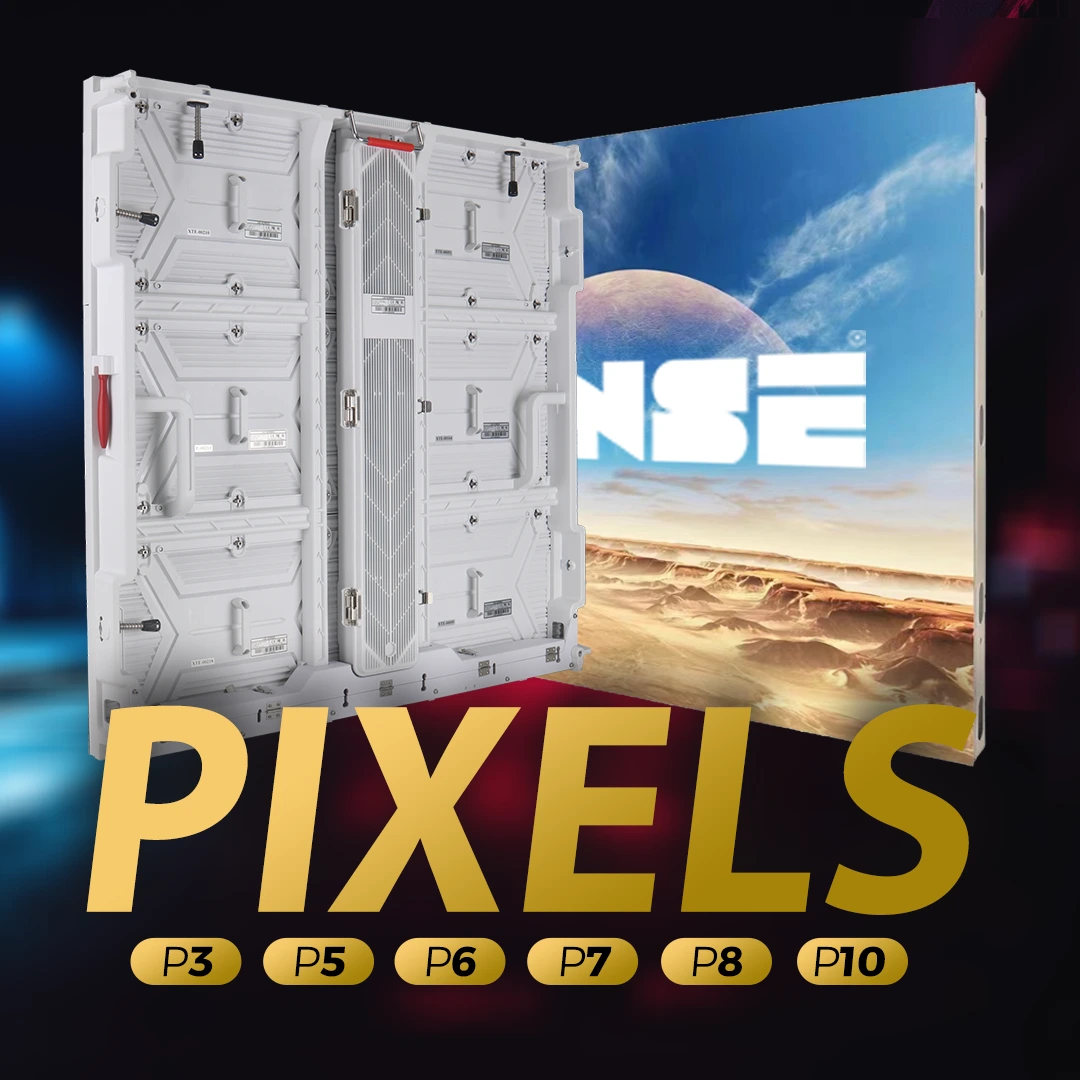

البيكسل المتوفر
P3 - P6 - P7 - P8 - P7 - P10
الأحجام
960*960 / 1000*1000 / 500*500
المميزات

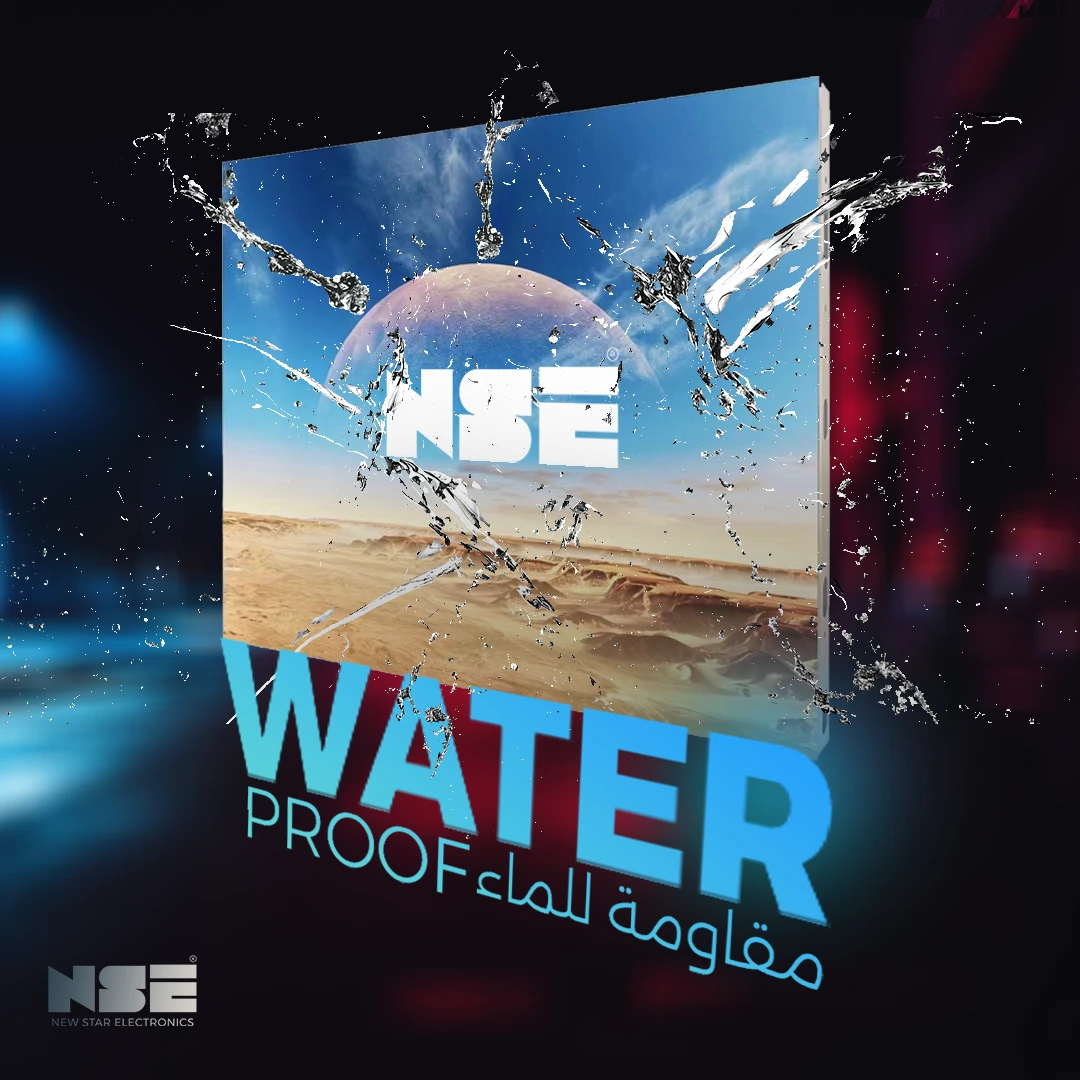

مقاومة للماء ودرجات الحرارة والغبار
الأنواع
خارجية

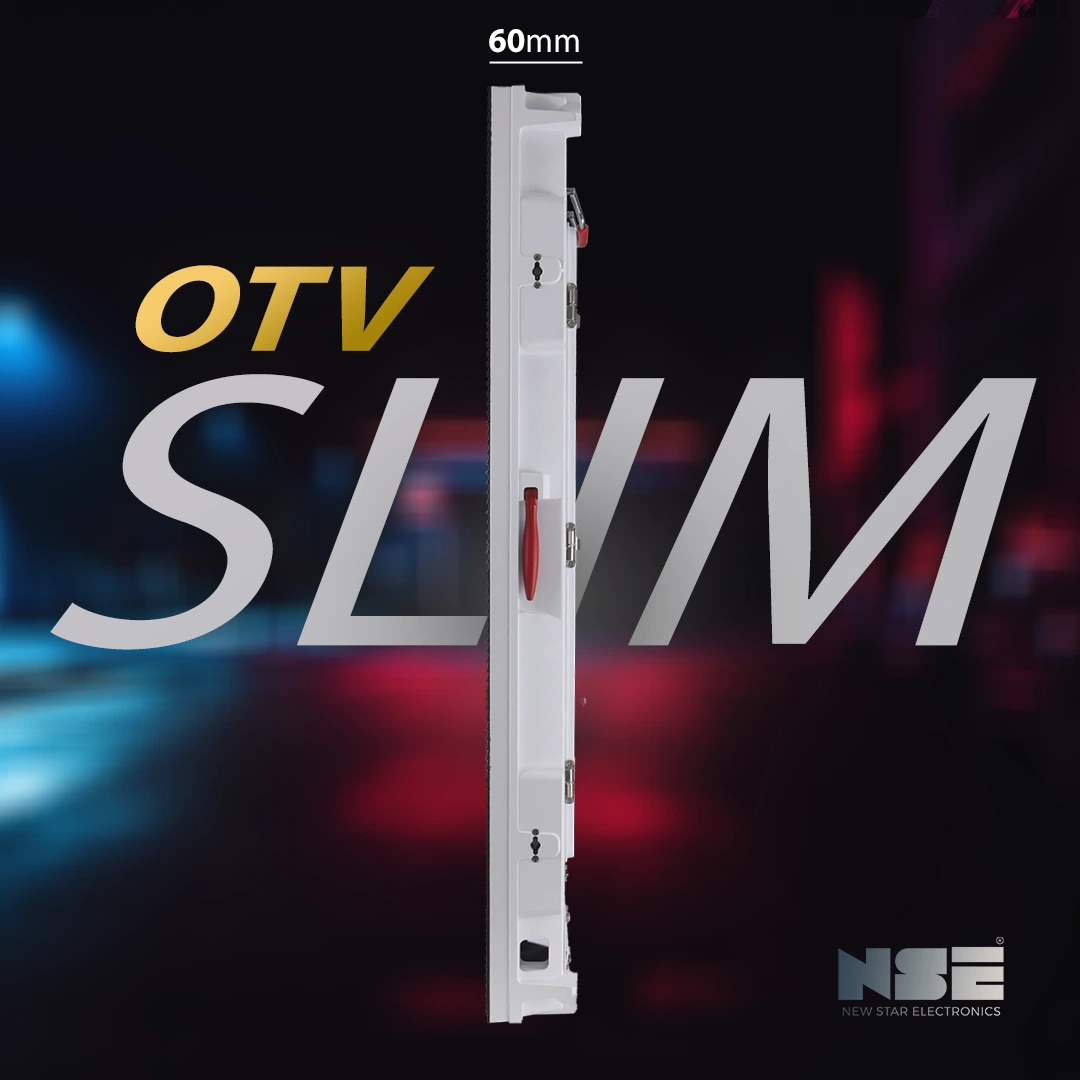

السمك
60mm
OTV SERIES SPECIFICATION
| Pixel Pitch | 6.67 | 8 | 3.9 | 7.8 |
|---|---|---|---|---|
| Density | 22.477 | 15.625 | 65.746 | 16.437 |
| LED Type | SMD2727 | SMD3535 | SMD1921 | SMD2727 |
| Pixel type | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module size | 480x320 mm | 480x320 mm | 500x250 mm | 500x250 mm |
| Module Resolution | 72x48 | 60x40 | 128x64 | 64x32 |
| Cabinet Size (H x W) | 960x960 mm | 960x960 mm | 1000x1000 mm / 1000x500 mm | 1000x1000 mm / 1000x500 mm |
| Cabinet Resolution | 144x144 | 120x120 | 256x256 / 256x128 | 128x128 / 128x64 |
| Case Material | Aluminium | Aluminium | Aluminium | Aluminium |
| Case Thickness | 60 mm | 60 mm | 60 mm | 60 mm |

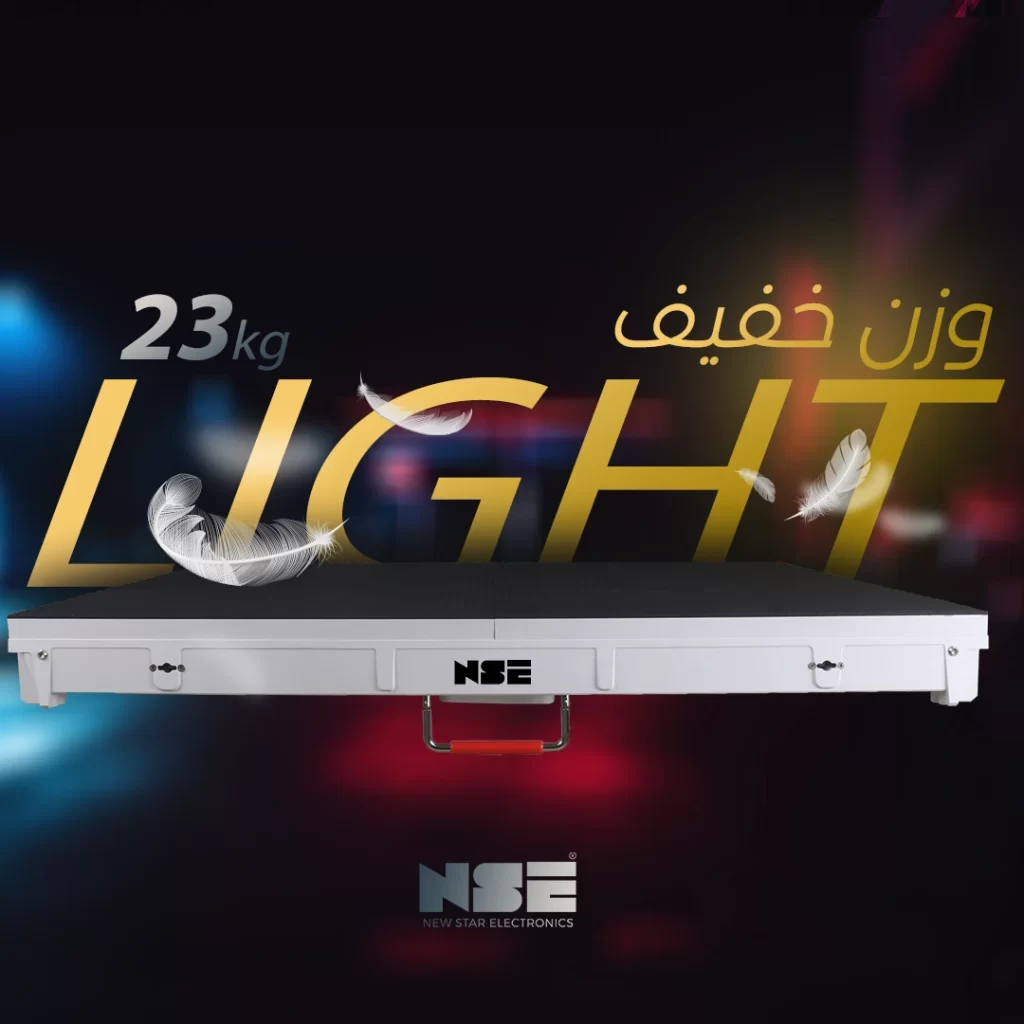

| Weight | 23 Kg | 23 Kg | 24 Kg / 13 Kg | 24 Kg / 13 Kg |

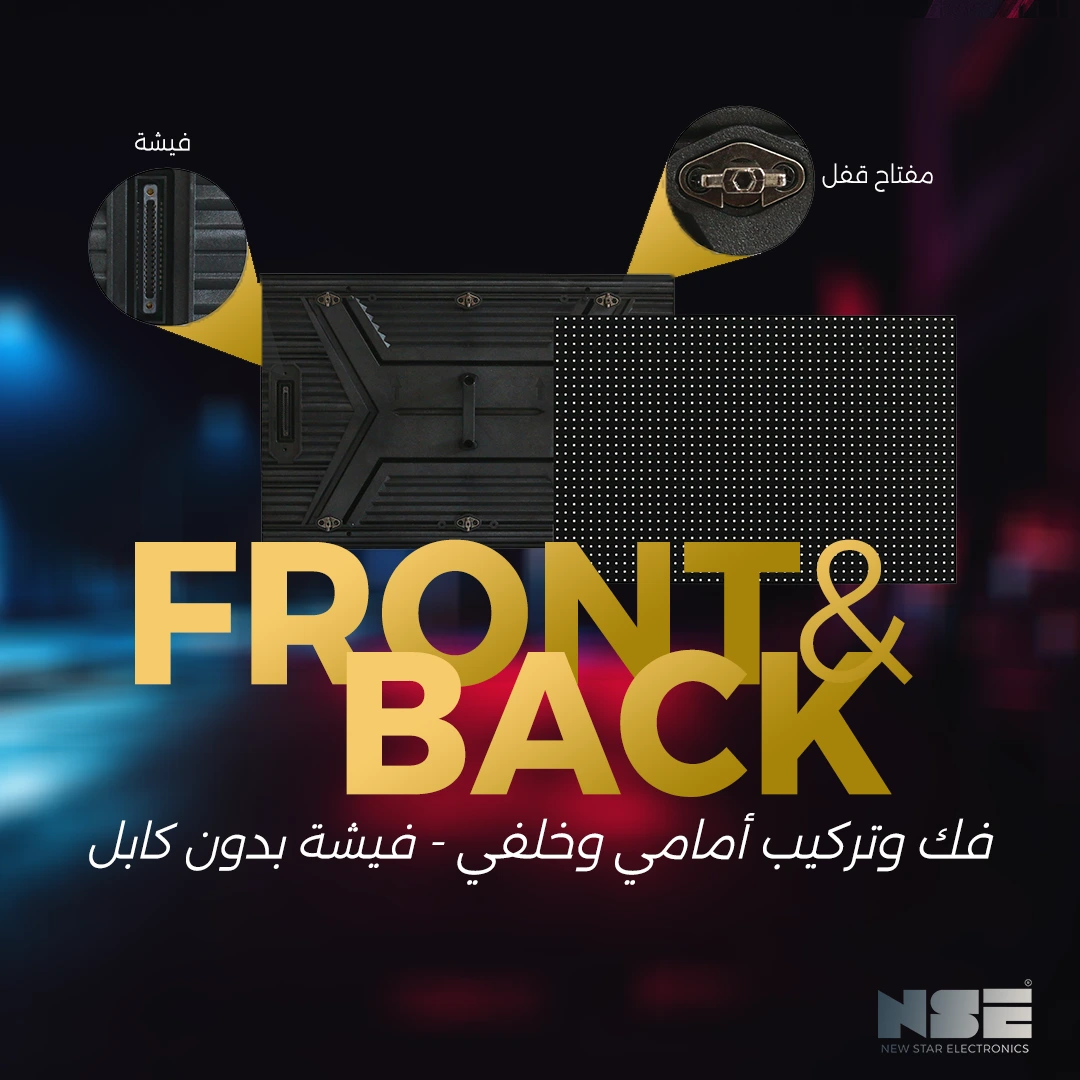

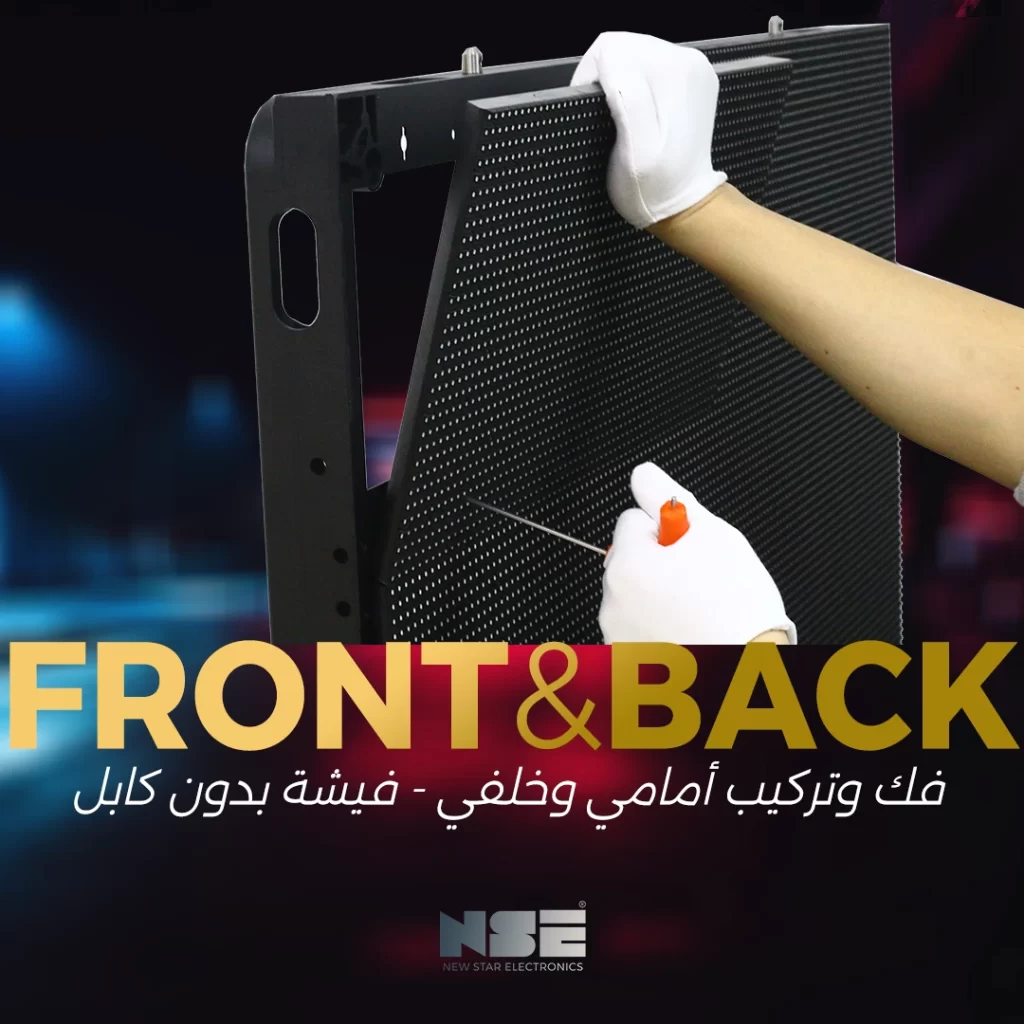

| Maintenance | Front&rear | Front&rear | Front&rear | Front&rear |
| Drive mode | 6S | 5S | 8S | 4S |

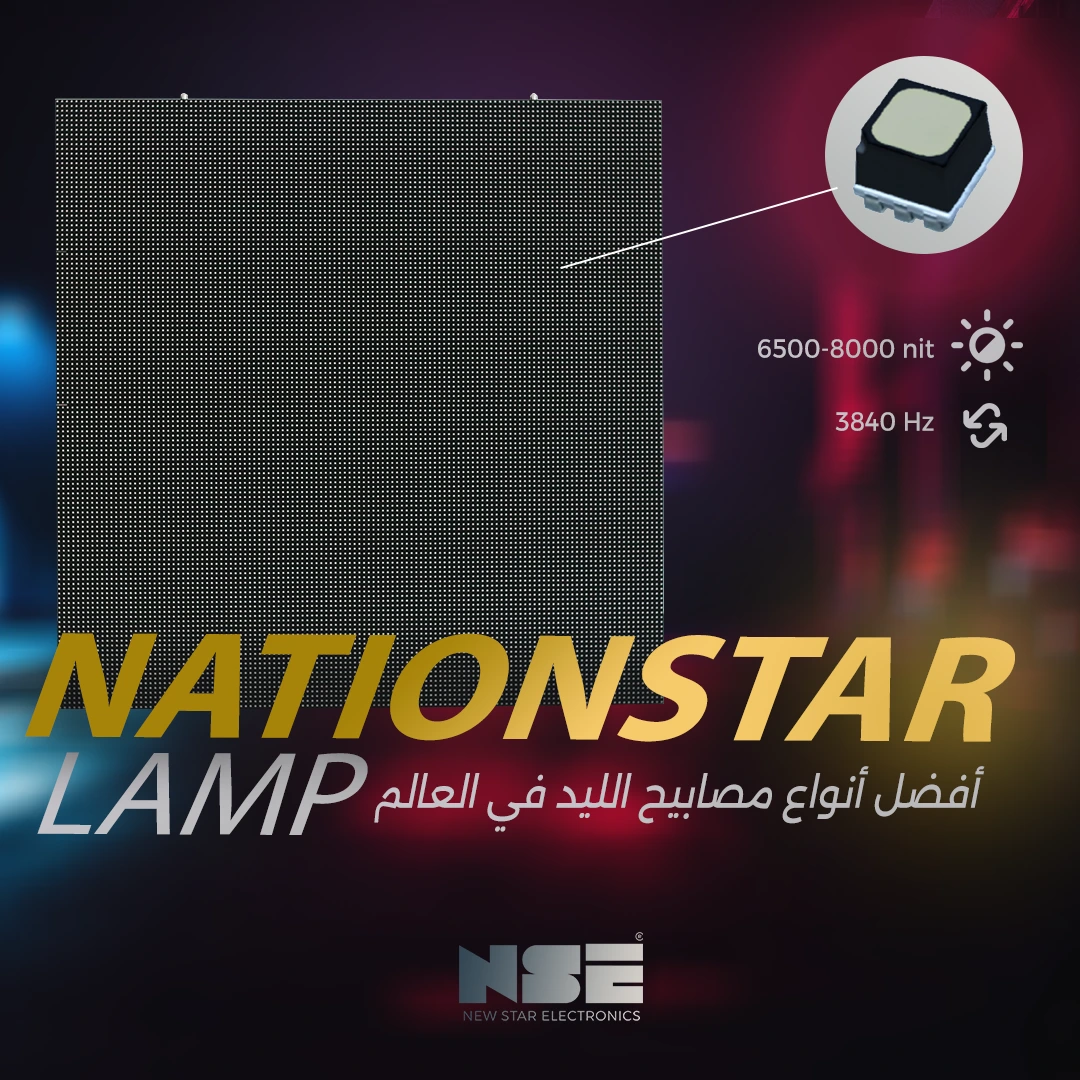

| LED Brand | Nationstar / MTC | Nationstar / MTC | Nationstar / MTC | Nationstar / MTC |
| Brightness | 6.500 / 8.000 | 6.500 / 8.000 | 6.500 / 8.000 | 6.500 / 8.000 |
| Refresh rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Voltage | 110-220 V | 110-220 V | 110-220 V | 110-220 V |
| Maximum Power Consumpiton | 600 W/sqm | 430 W/sqm | 600 W/sqm | |
| Average Power Consumption | 180 W/sqm | 180 W/sqm | 180 W/sqm | 180 W/sqm |
| Operating Temperature | -25ºC~45ºC | -25ºC~45ºC | -25ºC~45ºC | -25ºC~45ºC |
| Working Humidity | 10%~95% | 10%~95% | 10%~95% | 10%~95% |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Viewung Angle | 140° | 140° | 140° | 140° |
| Control method | Async&sync | Async&sync | Async&sync | Async&sync |
| Application | Outdoor (DOOH) | Outdoor (DOOH) | Outdoor (DOOH) | Outdoor (DOOH) |
